SKU: 109300 Category:

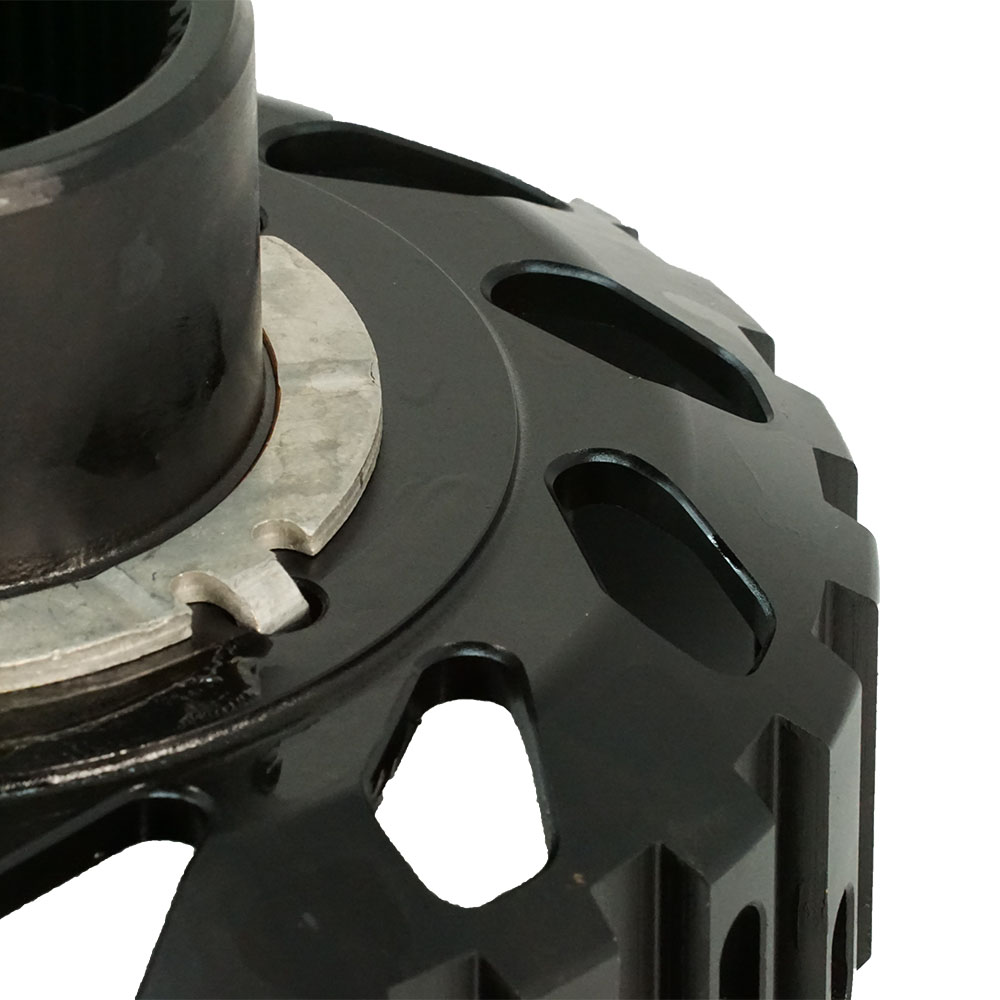

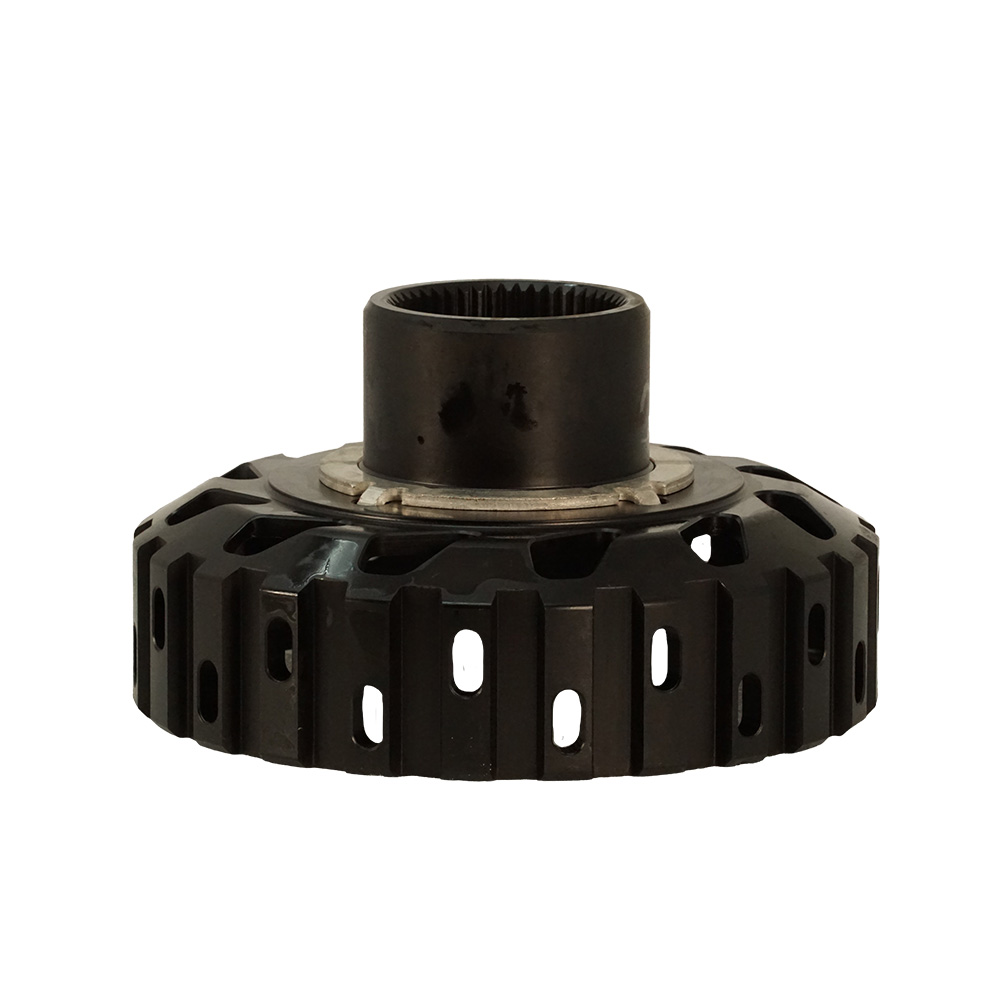

Allison C-2 Clutch Hub

  • TCS has addressed the early failure of the C-2 clutch hub in high torque/horsepower applications with this new billet steel clutch hub.
  • Made from 4140 HTSR billet steel.
  • Zinc Chromate finish.
  • Spline is lengthened .125″ for more contact, plus a spline boss diameter increase of .100″ for added strength.
  • No weight penalty for strength. The TCS hub is only 2.8oz. heavier than the O.E.M. part.
  • Comes with a modified thrust washer.
  • Machining modification to P1 Sun Gear Required.
  • Download Sun Gear Modifications instructions.

$515.00 USD

Description

Allison C-2 Clutch Hub

  • TCS has addressed the early failure of the C-2 clutch hub in high torque/horsepower applications with this new billet steel clutch hub.
  • Made from 4140 HTSR billet steel.
  • Zinc Chromate finish.
  • Spline is lengthened .125″ for more contact, plus a spline boss diameter increase of .100″ for added strength.
  • No weight penalty for strength. The TCS hub is only 2.8oz. heavier than the O.E.M. part.
  • Comes with a modified thrust washer.
  • Machining modification to P1 Sun Gear Required.
  • Download Sun Gear Modifications instructions.
