Description

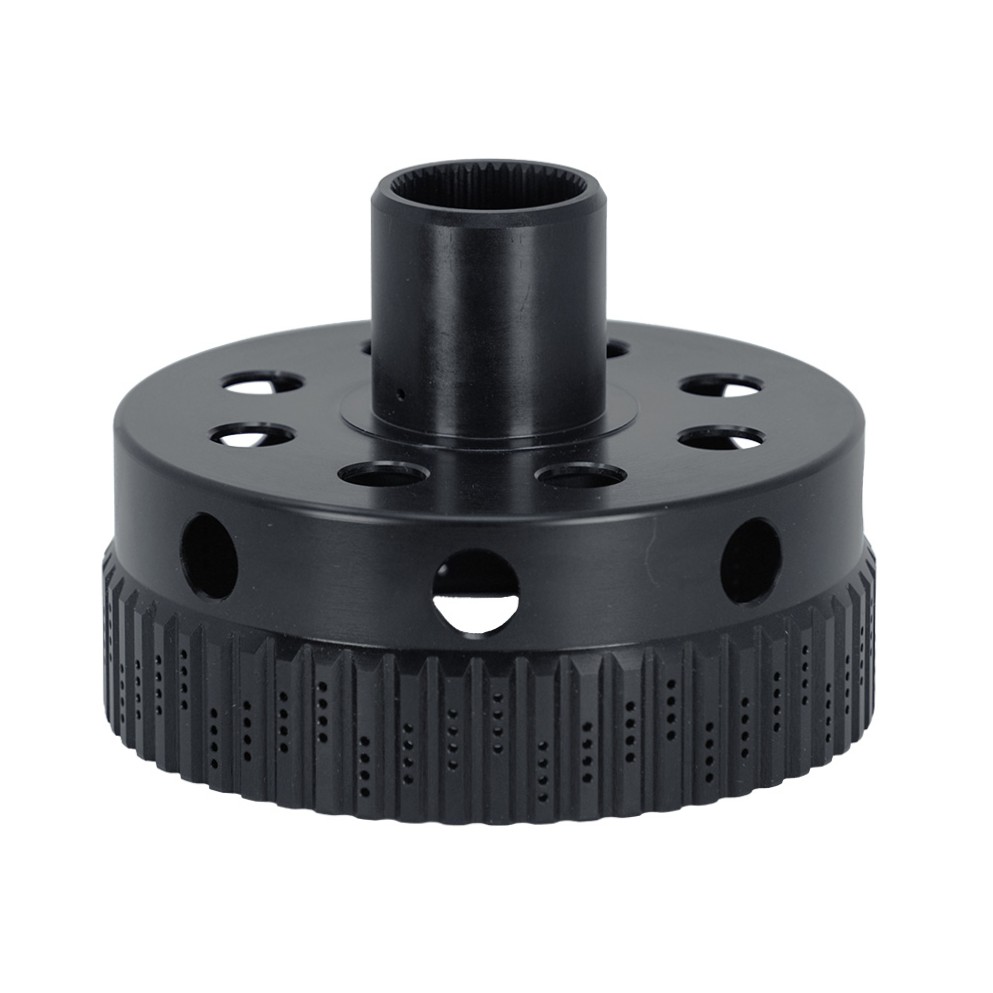

TCS is pleased to offer a performance replacement for the AS69RC’s K2 Clutch Hub. Our hub is strengthened in the areas where the OEM component is prone to failure; reverse-engineered with a thicker shell wall and updated to a single-piece design. The following describes all of the engineering differences and improvements in our product over the OEM’s hub:

OEM                                                                                                   TCS

Induction Hardened 42T Spline                                                Billet 4140 HTSR 42T Spline

2 Piece design – laser welded                                                  Single Piece design

Stamped Steel .075″ thick shell                                               CNC Machined 0.200″ shell wall thickness

No Coating                                                                                      Nitrided black for added wear resistance

Upgrading to a TCS billet K2 Hub guarantees improved heat dissipation and wear resistance, provides improved strength in the spline regions, and addresses weakness at the weld joint on the OEM hub.
